Titan II Frame

Sale price $329.99
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame
Titan II Frame

Titan II Frame

Sale price $329.99

9 in stock

Building on it’s predecessor the Kink Titan frame, the Titan II frame is truly the next generation of Kink frames. The Titan has been our go to frame for Kink Pro riders and amateurs alike, and the Titan II is no different with it’s updated geometry and refined design. All the features you’d expect like integrated chain tensioners, integrated seat post clamp, removable brake mounts and dual gussets are all still present along with the updated shorter chainstay and lower bottom bracket. The re-designed investment cast dropouts are even stronger than before, and the updated investment cast seat stay bridge makes for an even stiffer rear triangle.

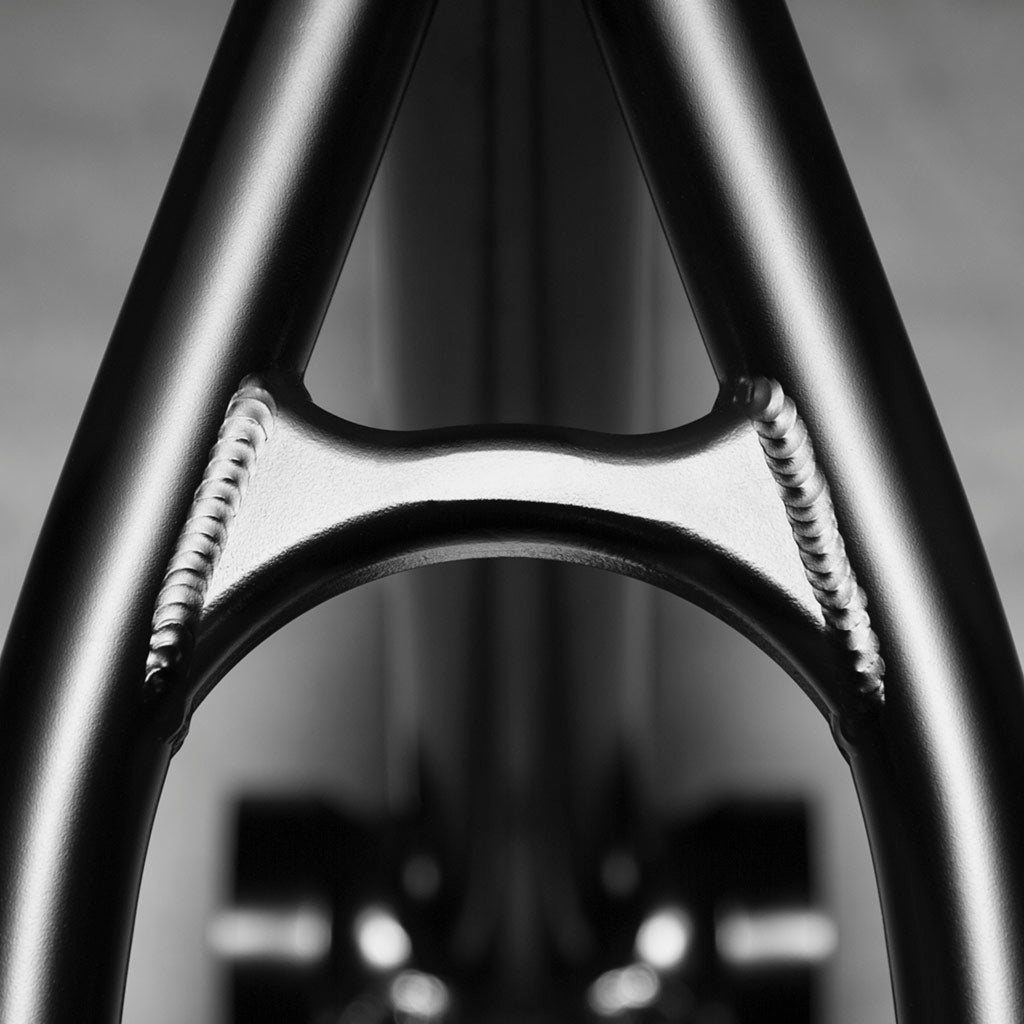

Seatstay Bridge

The Titan II features a unique investment cast seatstay bridge that stiffens up the rear triangle.


Dropout and Tensioners

Investment cast dropouts feature a stiffer plug-in stay design and include integrated chain tensioners.


Headtube and Gussets

Featuring full gussets both top and bottom and a CNC K-Brick engraving on the headtube.

Geometry

Toptube Sizes 20", 20.5”, 20.75”, 21”, 21.25"
Chainstay Length 13" Slammed
Bottom Bracket Height 11.6"
Standover Height 8.5"
Headtube Angle 75°
Seattube Angle 71°

Tech Spec

Material 100% Seamless Sanko 4130 Chromoly Tubing
Headtube Integrated Campy Spec with CNC Engraving
Dropouts Investment Cast with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Removable Through-Bolt Brake Mount System
Particulars Toptube and Downtube Gussets Widened Stays for Big Tire Clearance Integrated Seat Post Clamp Investment Cast Seatstay and Chainstay Bridges
Weight 4lb 12oz (20.5")
